Isartherm 6060

Isartherm 6060

Isartherm 6060

Features

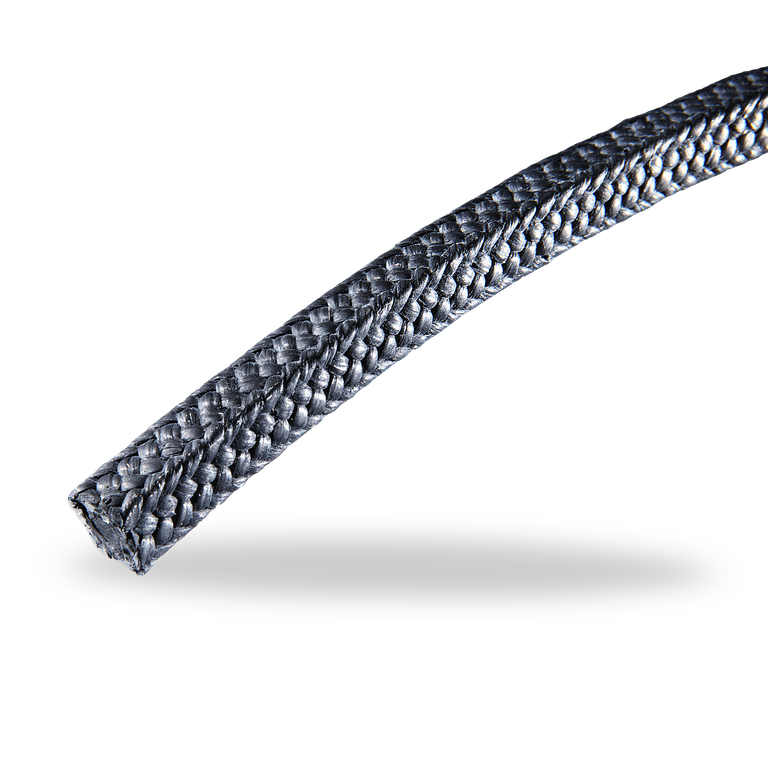

Isartherm 6060 is a diagonally braided carbon yarn packing with a PTFE/graphite impregnating agent combined with a silicone oil-free running-in lubricant. It is manufactured from pre-impregnated high performance yarns with the addition of a special lubricant. Isartherm is a special packing for the paper industry and for applications where there are high requirements in terms of functionality and stability.

Advantages

  • High functionality
  • High stability

Operating range

Plunger Pumps
Pressure: p = 30 bar
Sliding velocity: vg = 25 m/s

Temperature
  • Continuous operation:
    t = -50 °C … +300 °C

Chemical resistance:
pH = 1 ... 14
Universal chemical resistance. Not suitable for use in oxidizing media such as oleum (fuming nitric acid), gaseous fluorine and molten alkali metals.

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg

Similar products

BuraTAL-Flex 6070

BuraTAL-Flex 6070 is a graphite-based, multi-layered high performance packing It is manufactured from high-purity expanded graphite yarn (>99 %) combined with a newly-developed high temperature impregnation. For long-term stable use in the high temperature range, the packing is additionally finished with a corrosion inhibitor. The multi-layer structure combines the benefits of maximum possible gap bridging due to the inner Inconel wire reinforcement with protection of the high-quality spindle surfaces in the valves. The packing can be installed without special end rings.

BuraTAL-Flex 6224

BuraTAL-flex 6224 is a diagonal braided packing made from a combination of Aramid and PTFE yarns with special impregnation. 6224 is the preferred choice for valves, especially low emission applications.

BuraTAL-Flex 6250

BuraTAL-Flex 6250 is a concentrically braided packing with a dense PTFE yarn sleeve and a carbon yarn core. In addition it contains a special impregnation. 6250 is the preferred choice for fugitive emission, applications and for on/off and control valves.
